Magico M6 $172,000 per pair Review

January 18, 2020 § Leave a comment

http://www.theabsolutesound.com/articles/magico-m6/

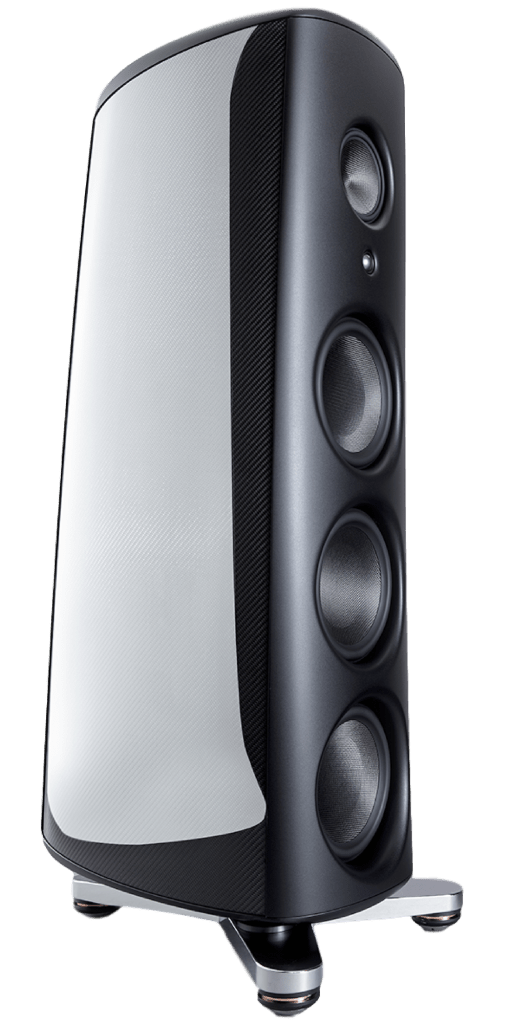

“The three MPod feet that support the tripod on which the enclosure rests are very sophisticated devices that do more than couple the speaker to the floor. Magico calls the MPod a “noise-channeling support system.” Cones and spikes perform the important function of coupling the speaker to the floor so that the cabinet vibrates less. This anchoring effect makes the cabinet more resistant to moving in response to driver motion. But cones and spikes don’t dissipate vibrational energy. The ideal loudspeaker-to-floor interface would thus provide the anchoring effect of spikes, along with vibration dissipation. That’s the theory behind the MPod. The device employs constrained layer damping that is tuned so that the MPod provides solid coupling to the floor below 300Hz, but attenuates noise and vibration above that frequency. The damping material, which was reportedly developed for NASA, is so thoroughly researched that the designer using it can specify the precise frequency at which the material begins attenuating vibration. Note that the MPod’s lower hemisphere isn’t connected with hardware to the speaker, but rather through the constrained layer damping mechanism. The MPod is usually shipped with a pin inserted through the device that is removed once the MPod is installed. Removing the pin engages the constrained layer damping structure. It is thus possible to hear the effect of the device by pulling the pin. Unfortunately, the review samples had made the rounds of audio shows and weren’t shipped with pins, so I was unable to hear this comparison.”
